Hitec DB950SW Wide Voltage Steel Gear 25T Digital Brushless Servo
The good folks over at Hitec have announced that their DB950SW Wide Voltage Steel Gear 25T Digital Brushless Servo is now available. This beast of a servo comes with a trick looking aluminum case, with serious speed and torque under the hood. Here are the highlights-
* Industry leading high-resolution with a 32-bit MCU & 12-bit ADC
* Ultra efficient and powerful brushless motor
* Wide 4.8 ~ 8.4 voltage range
* Allows use with any common battery chemistry
* Industry standard 25-tooth output spline with 3mm hex screw
* Steel gears for maximum durability
* Programmable PWM digital amplifier
* 1M (1 million) cycle long life potentiometer
* Dual ball bearing supported output shaft
* Diamond cut aluminum heat sink center case
* Dust resistant and splash proof case
* Speed (Second @ 60°) – 0.23 ~ 0.17 ~ 0.14
* Maximum Torque Range oz. / in. – 486 ~ 555 ~ 555

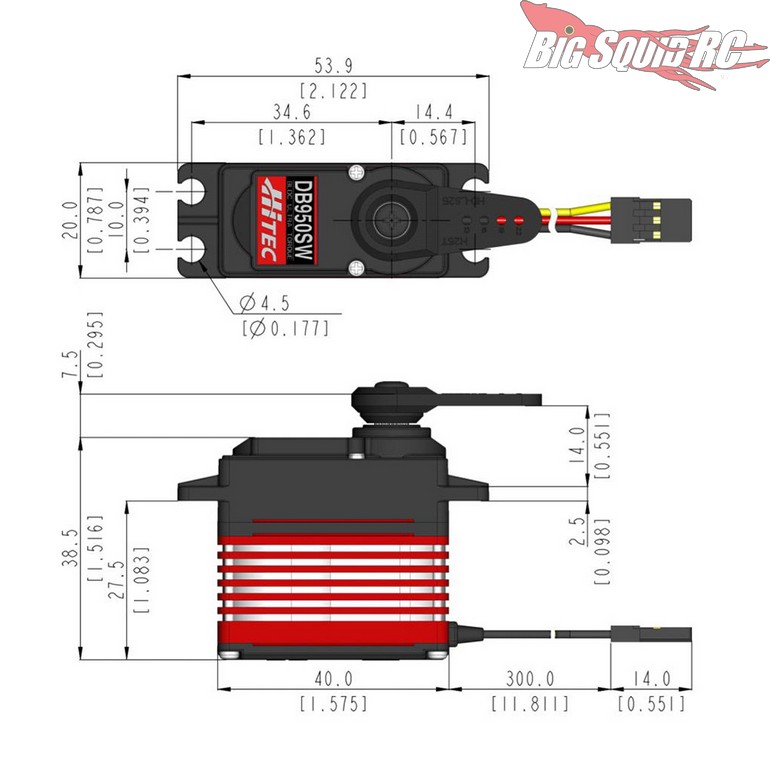

* Size – 1.58 x 0.79 x 1.52″
The Hitec DB950SW Digital Brushless Servo is street priced at $139 and you can Smash This Link to get more Hitec news on Big Squid RC.
