Injora Complete Transmission & 50T Brushed Motor for the Axial SCX24 and AX24
Injora has just released a new motor and transmission upgrade for the Axial SCX24 and AX24. The Complete Transmission & 50T Brushed Motor (SCX24–169BK) offers improved durability and smoother performance compared to the stock motor and transmission setup found in these 1/24 crawlers.

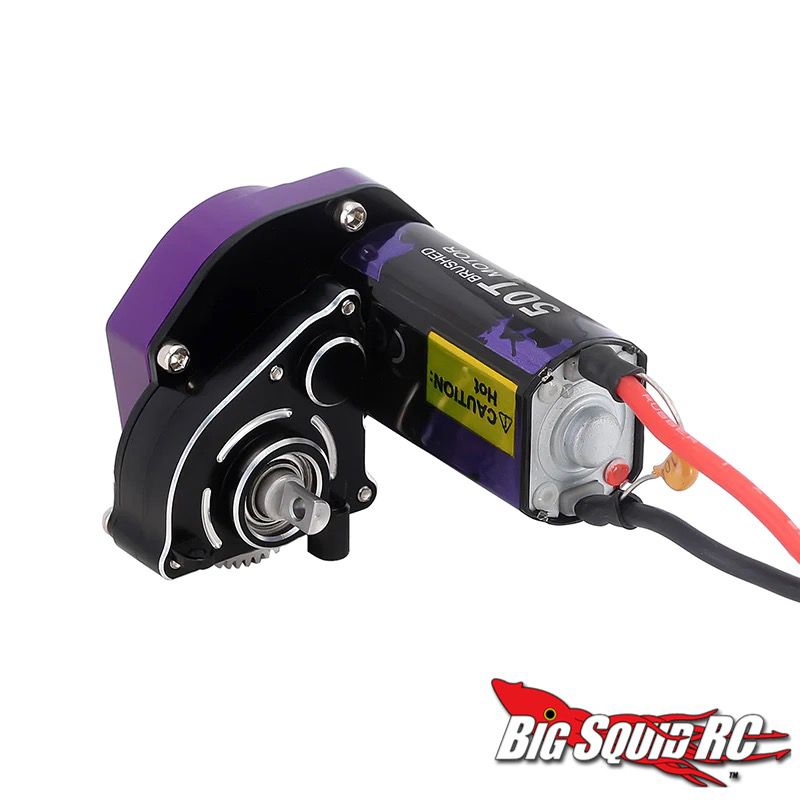

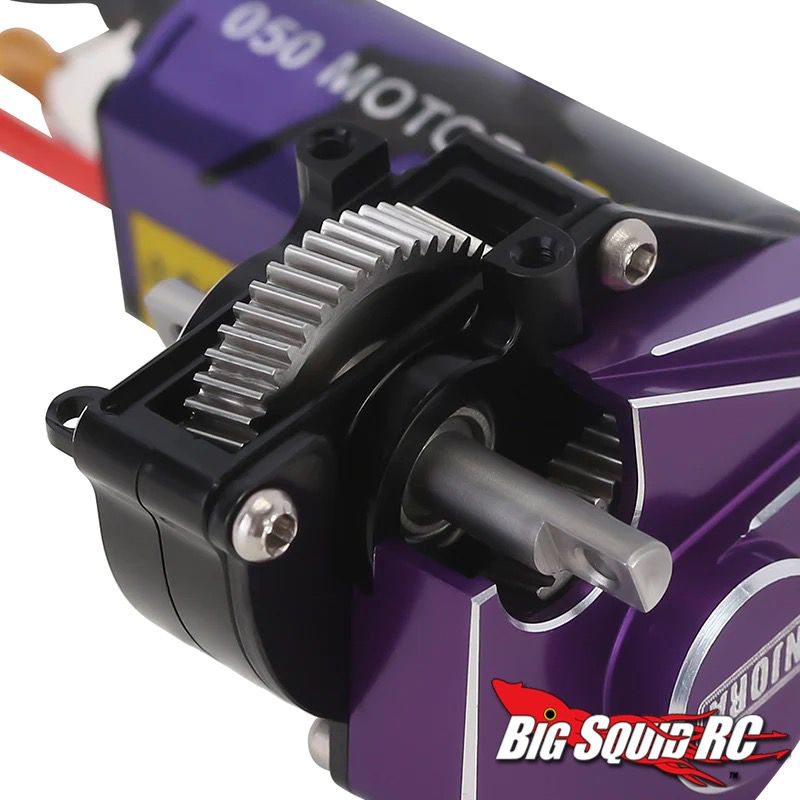

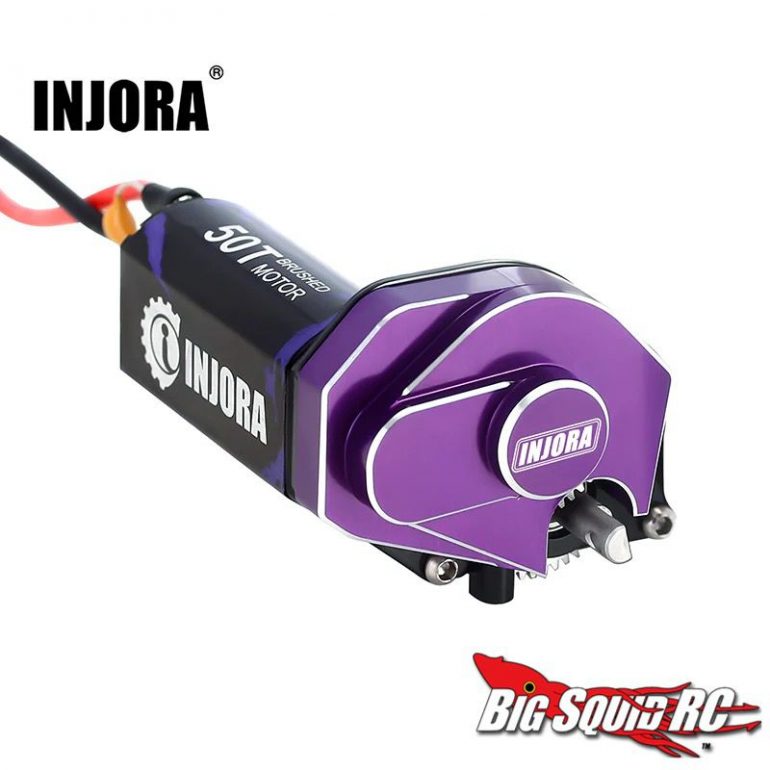

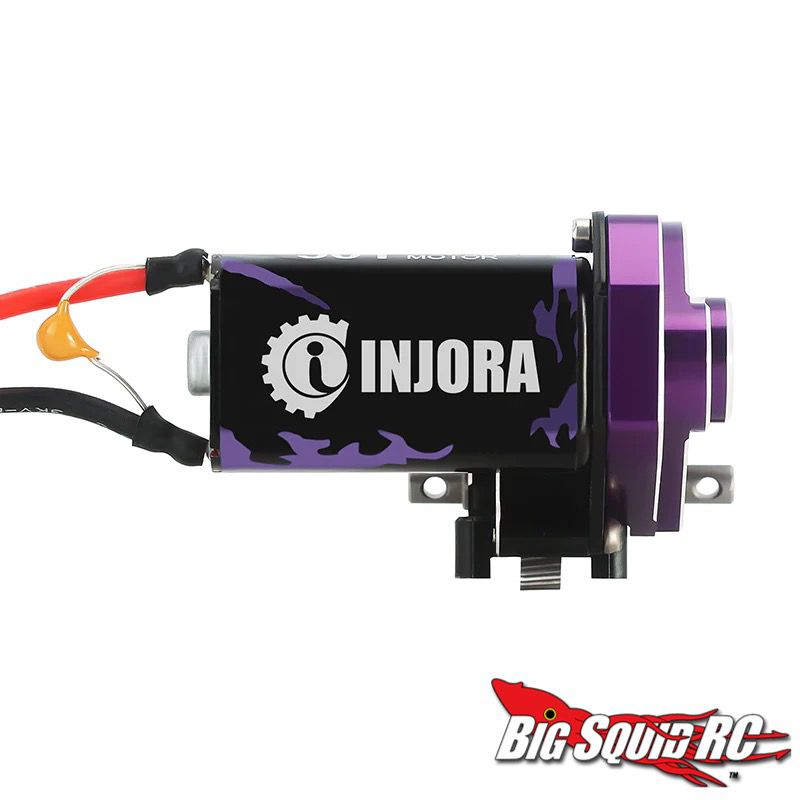

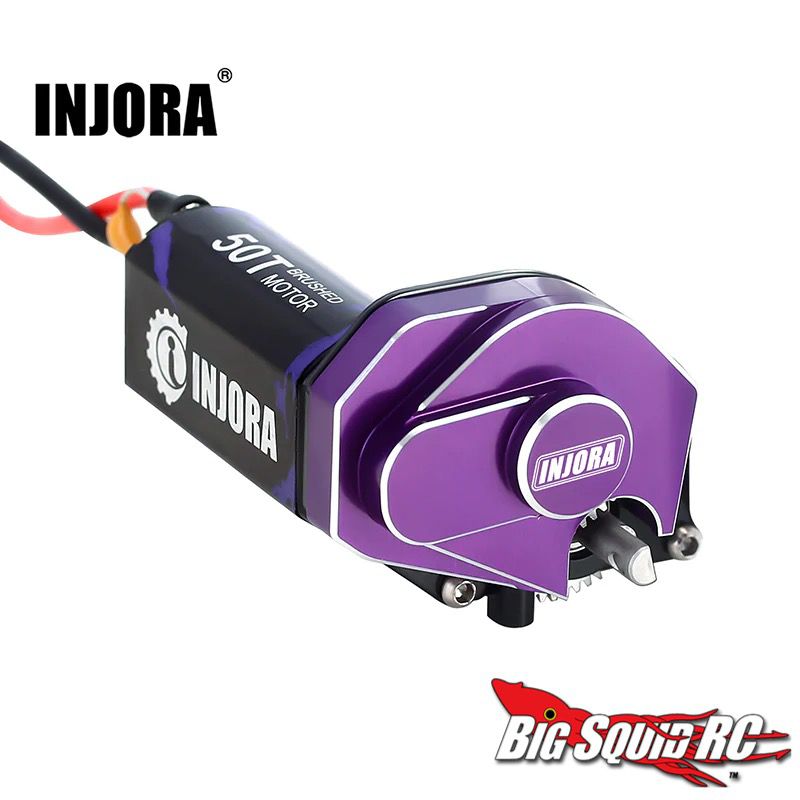

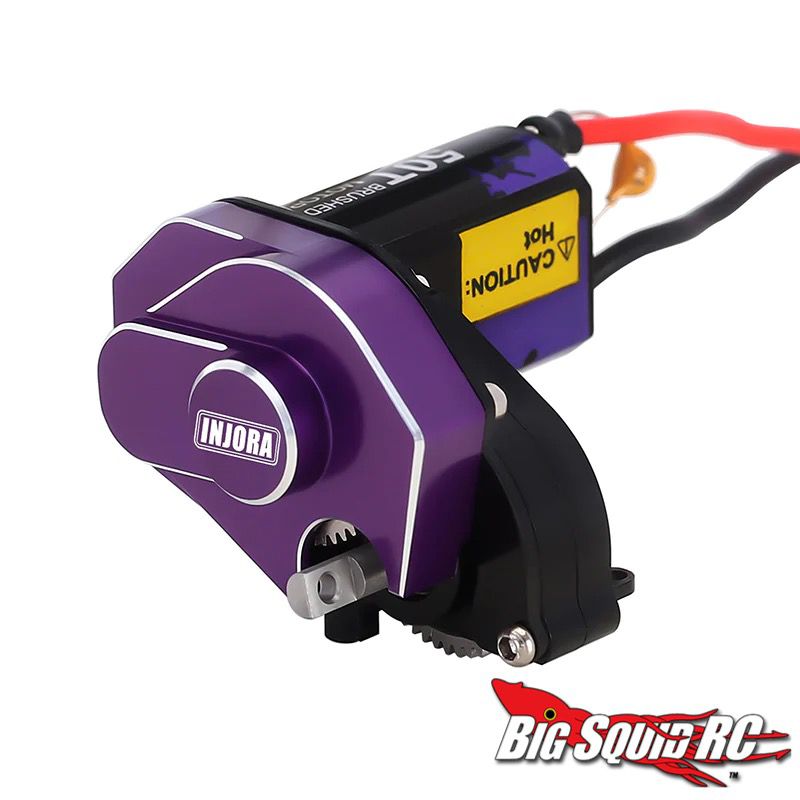

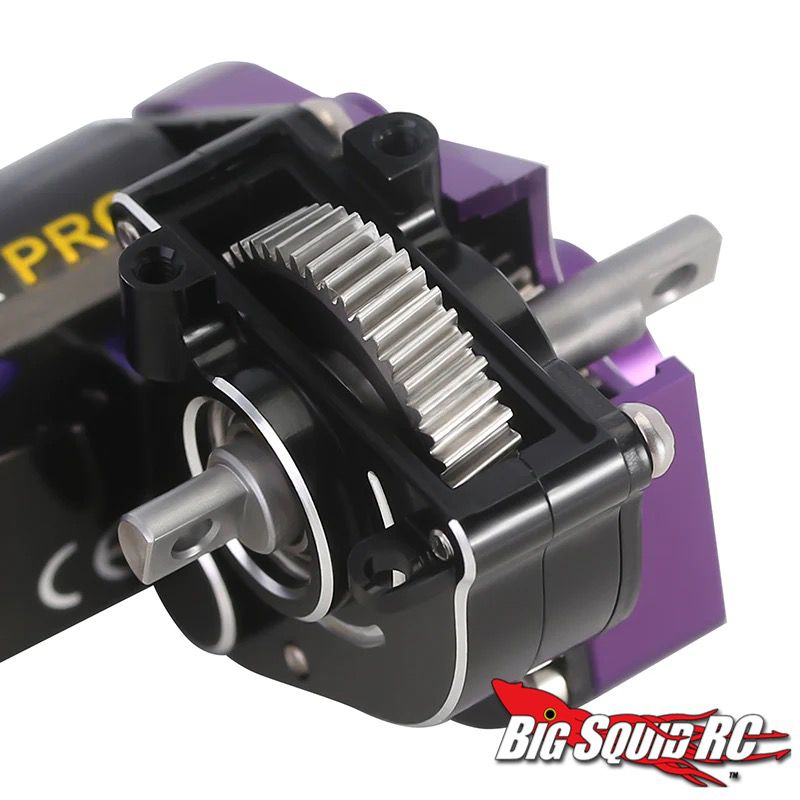

This upgrade offers a pre-assembled motor and transmission, meaning you won’t have to spend much time wrenching before hitting the trail. The transmission case features a CNC-machined aluminum housing with steel gears, and the motor features a high-torque magnet for improved low-end performance.
Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Hardened Steel
- Motor Pinion Material: Nylon
- Transmission Gear Set: 51T & 19T
- Spur Gear: 0.5 Mod, 55T
- Pinion Gear: 12T
Motor Specifications:
- Turn: 50T
- Rated Voltage: 7.4V
- Total Length: 28.5mm (1.12in)
- Output Shaft Length: 4.9mm (0.19in)
- Output Shaft OD: 1.5mm (0.06in)
- At No Load: Speed: 25500 rpm
Injora’s Complete Transmission & 50T Brushed Motor is priced at $31.99 and is available at injora.com.
