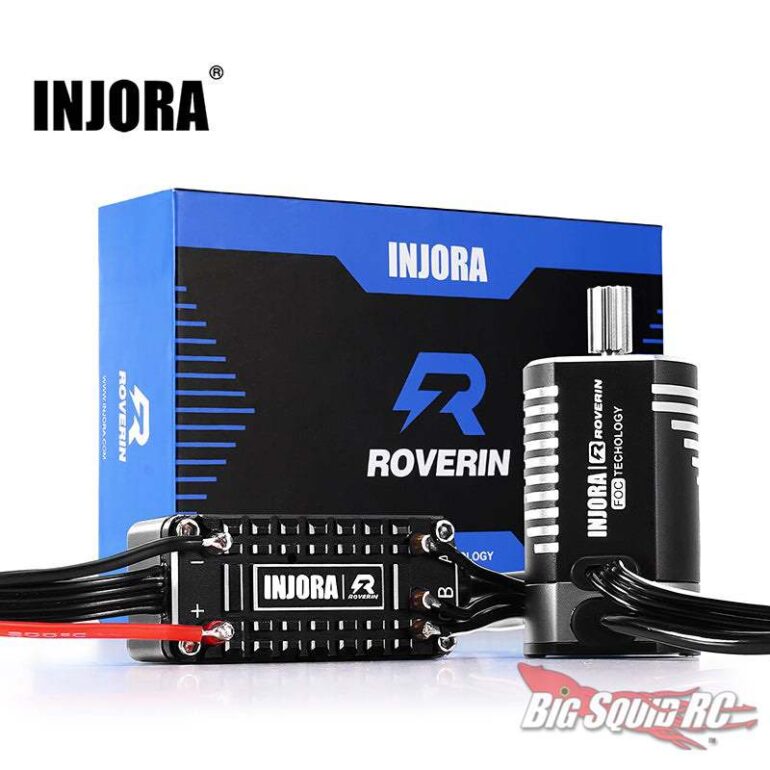

Injora Roverin FOC Sensored Brushless ESC/ Motor Combo for the Traxxas TRX-4M and Redcat Ascent-18

If you’ve been feeling the urge to add brushless power to your Traxxas TRX-4M or Redcat Ascent-18, you’ve got a new motor and ESC combo to consider. Injora has released its Roverin FOC Sensored Brushless power system, designed to provide powerful and smooth performance to your 1/18-scale R/C crawler.

While Injora is no stranger to brushless motor offerings, the Roverin differs from the Purple Viper and Fat Viper in a few ways. Rather than
an outrunner design, the Roverin motor is an inrunner, which keeps dirt and debris from catching and clogging up the motors operation.

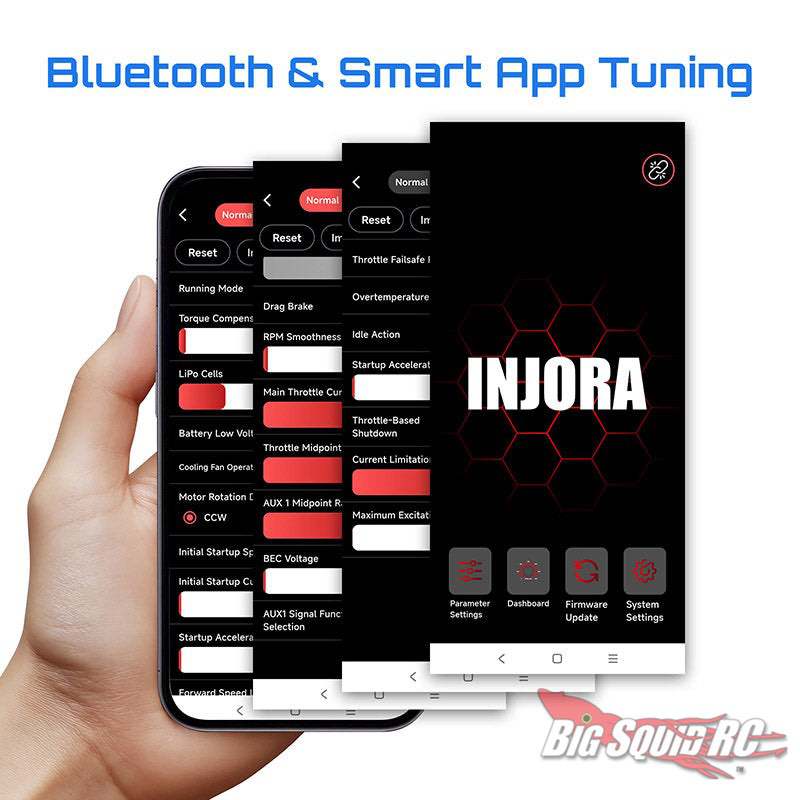

This new motor also features FOC (Field Oriented Control), which give it plenty of torque and speed at a wide range of throttle inputs. The ESC can be tuned through the Injora Link app, allowing you to adjust your motor performance on the fly.

Other highlights of this ESC and motor combo are a waterproof design, battery support for 2–3S LiPo, and a motor KV rating of 4800kv.

ESC Specs:

• Only compatible with INJORA Brushless Sensored 180 Motor
• ESC Type: FOC Brushless ESC (FOC-M30)
• Continuous/Peak Current: 30A / 100A
• Battery Support: 2–3S LiPo
• BEC Output: 0–10V adjustable, 5A continuous, 10A peak
• Size: 35.5mm×16.3mm×16.3mm
• Weight: 25.5g
• Waterproof: Yes

Motor Specs:

• Only compatible with INJORA FOC Brushless ESC FOC-M30
• Motor Type: Brushless Sensored 180 Motor
• Motor KV: 4800KV
• At no load(7.4V) : RPM: 35000±10% Current: ＜0.9
• At load(7.4V) : RPM: 31000±10% Current: 3.0A
• Battery Support: 2–3S LiPo
• Size: 42.7mm×18mm×20.5mm
• Weight: 36.5g
• Motor Pinion: 0.4mod 11T
• Waterproof: Yes

Priced at $109.95, the Roverin FOC Sensored Brushless ESC/ Motor Combo is available at injora.com.
