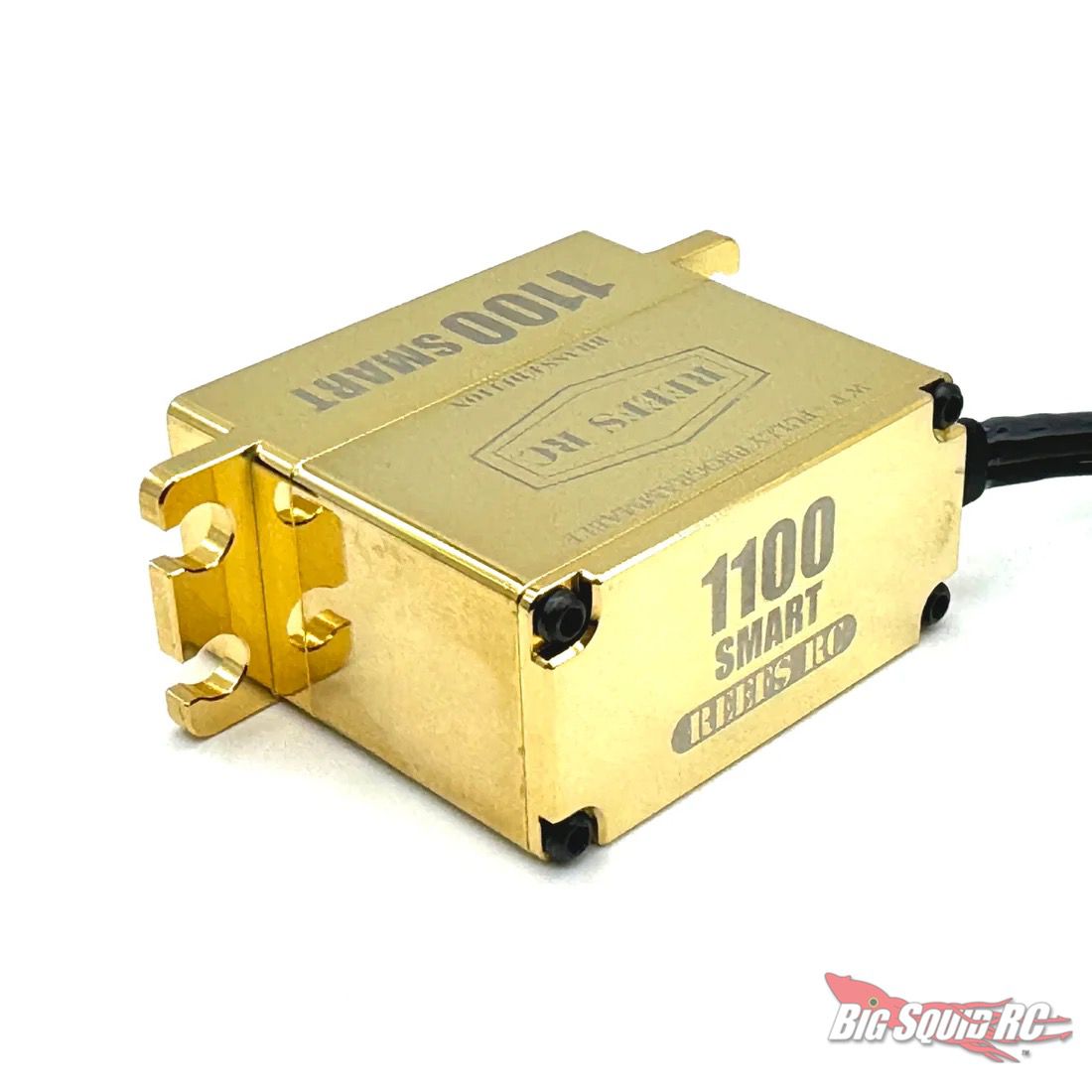

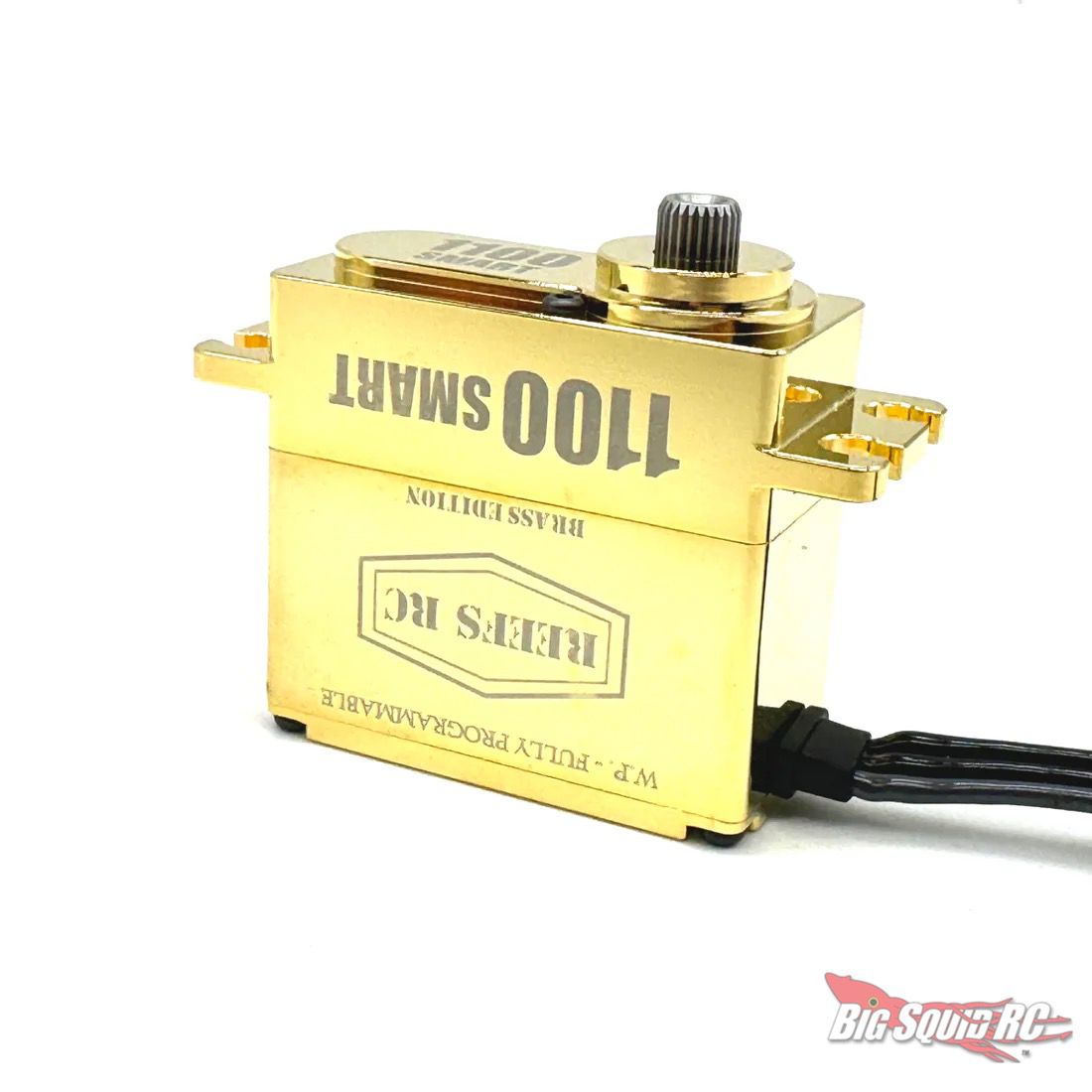

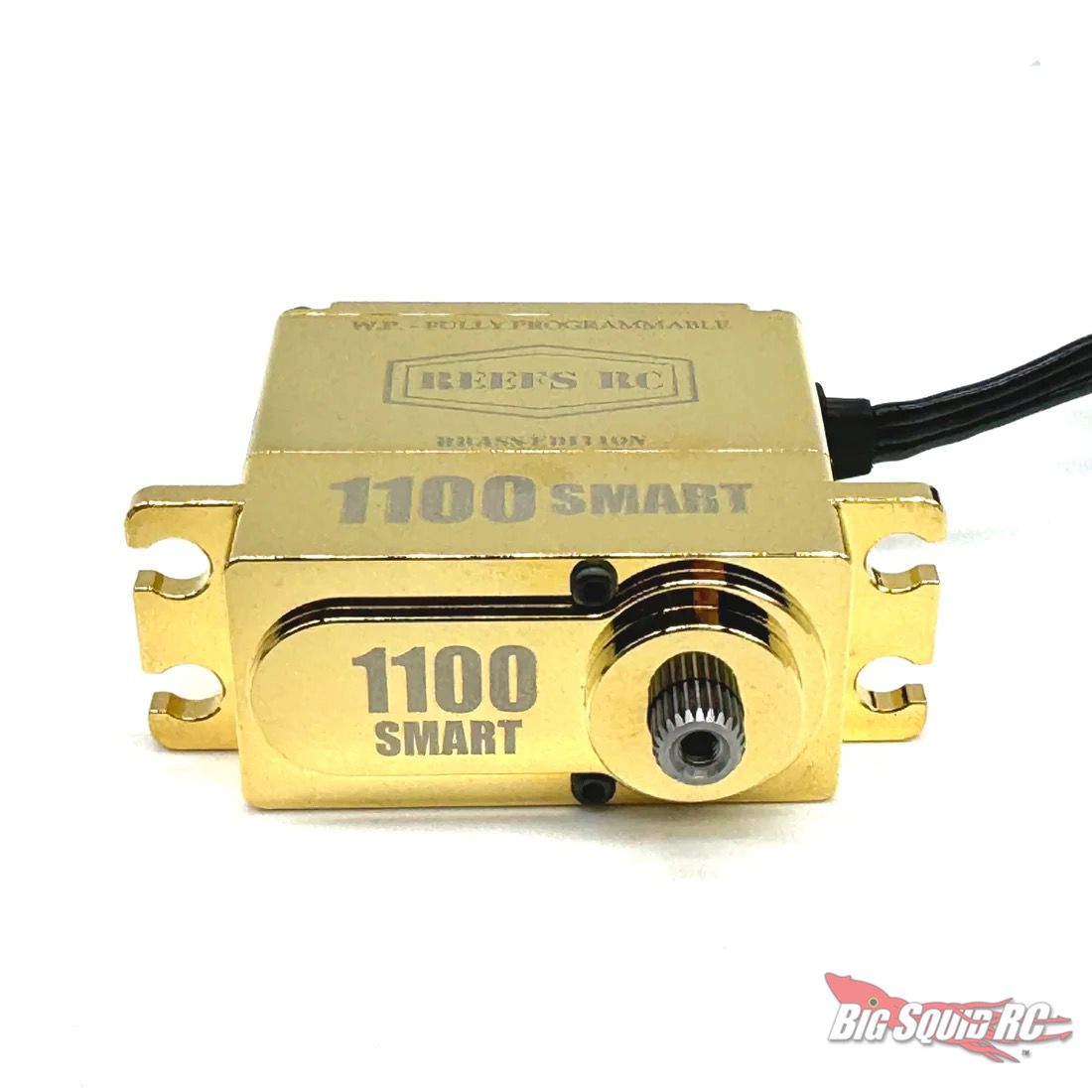

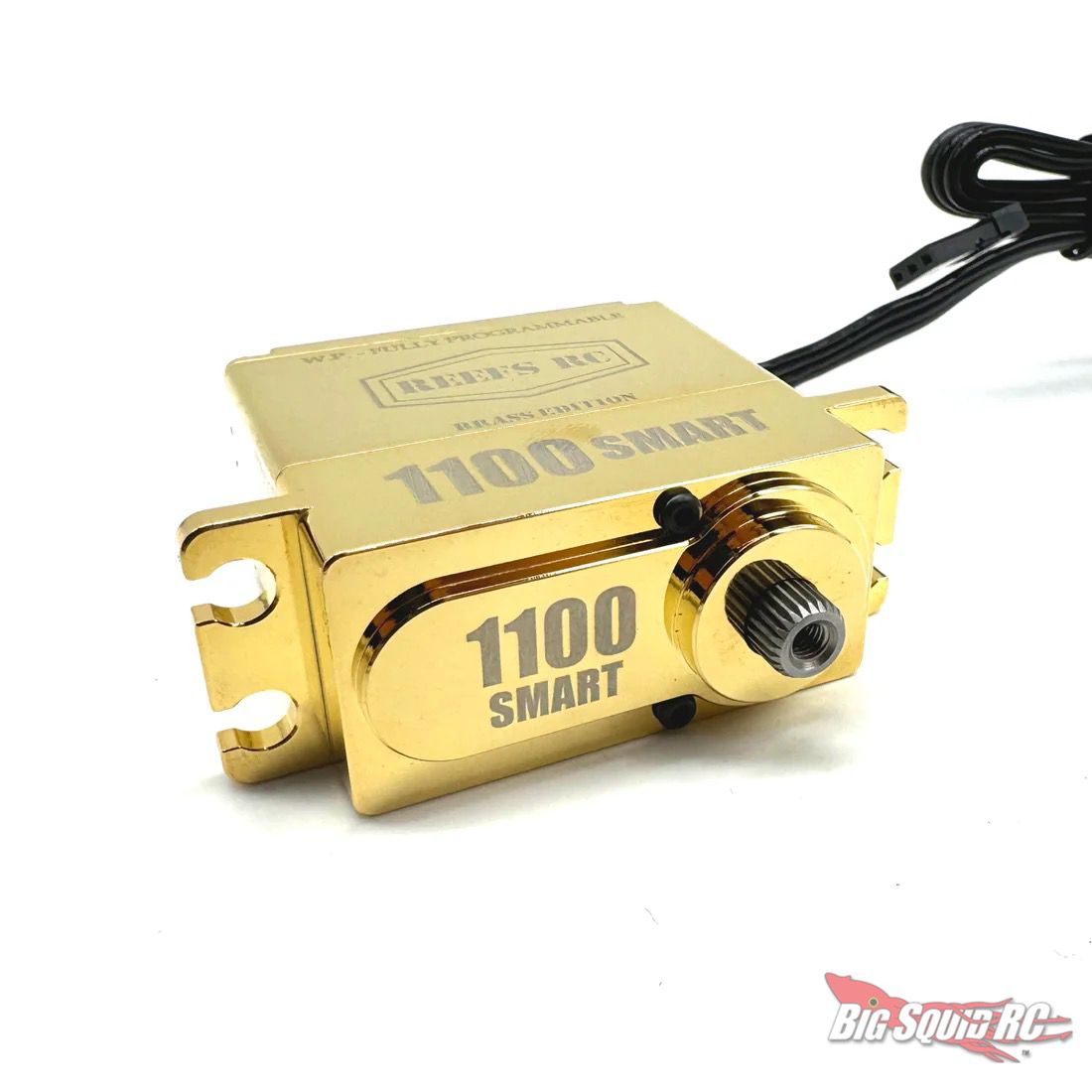

REEFS RC 1100 Smart Brass Edition Servo
New from REEFS RC is their latest brass-bodied servo, the 1100 Smart Brass Edition. Capable of handling both steering and winching duties, this servo not only provides powerful performance for your rig, but it also adds 150g of weight to your crawler, helping it maintain traction on the trail.
Featuring the same design and functionality of the original 1100 Smart Servo, the Brass Edition takes adds significant weight for improved stability and traction. Highlights of this servo include a 4-pole brushless motor, 7-point seals for waterproofing, military-grade construction, and more.
REEFS RC 1100 Smart Brass Edition Servo Specs:
- Voltage: 4.8V – 8.4V
- Internal: Steel Gears / BRASS Casing / ULTRA Finish
- Weight: 5.29oz / 150g
- Bearing Type: 4 Ball Bearings / Weight: 2.99oz
- Dimension: 1.57 x .79 x 1.5 (LWH)
- Torque: 760oz @ 6v / 930oz @ 7.4v / 1100oz @ 8.4v
- Speed: .16sec @ 6v / .13sec @ 7.4v / .12sec @ 8.4v
- Spline: 25T
- Dead Band Width: 2µs
- BEC Not Req. (Recommended for max performance)
- Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
- Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
Priced at $229.99, you can learn more about the REEFS RC 1100 Smart Brass Edition Servo at reefsrc.com.
