REEFS RC 49Sub Micro Multi-Application Servo

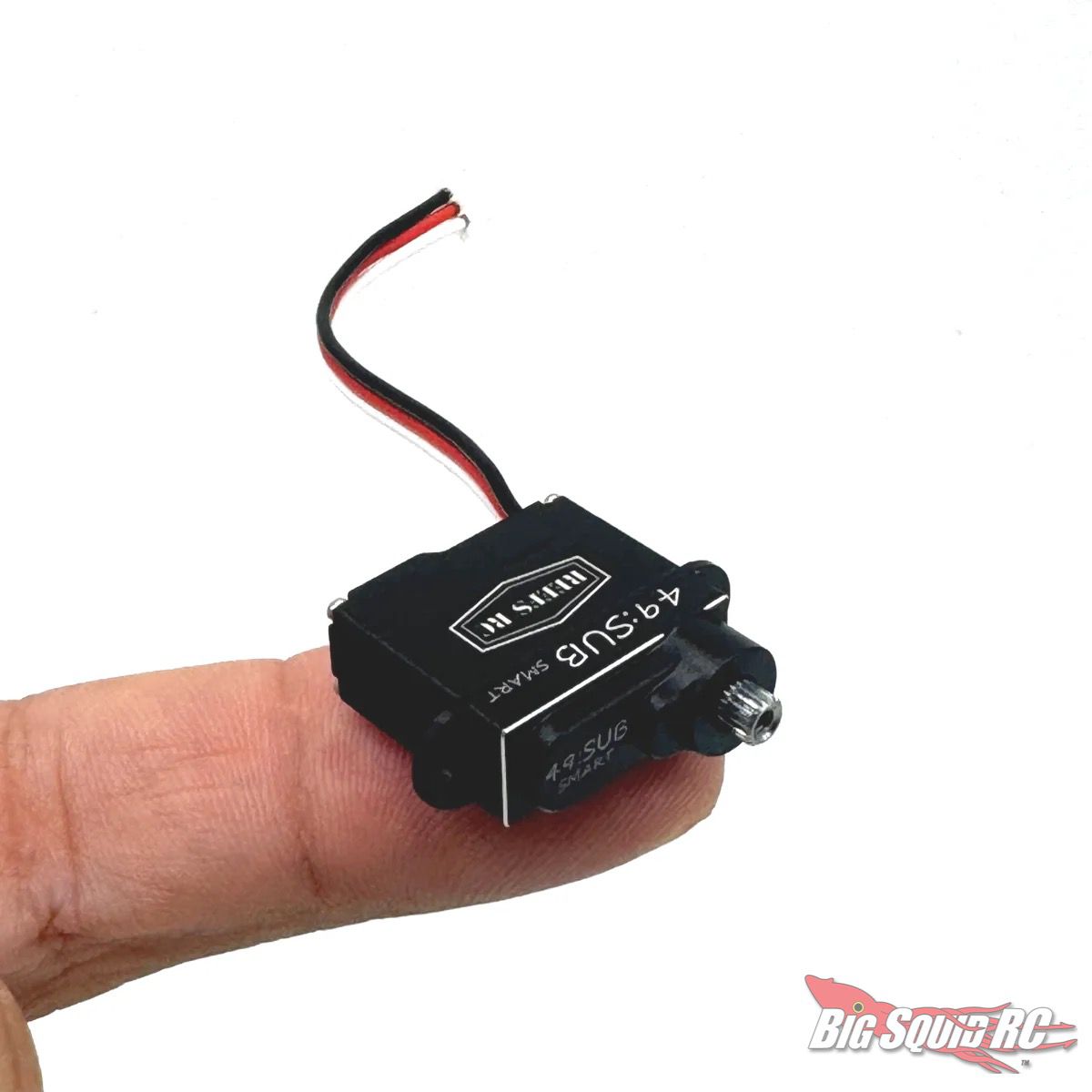

Do you have a new R/C build that calls for a small, no-nonsense auxiliary servo? If so, feast your eyes on the new 49Sub Micro from REEFS RC. Designed with power and speed in mind, this servo features an ultra-compact design and is ready to handle whatever secondary control duties you need.

The 49Sub Micro Servo sports an aluminum case, sealed bearings, and metal gears to help ensure long life and reliable performance. It can be programmed using the REEFS Link dongle and software and converted into a winch.

Specs:

• Voltage 4.8v – 8.4v
• Internal: Metal Gears
• CNC Aluminum Casing
• Sealed Bearing
• Temp Rate: -15C°~ +70C
• Operating Travel: 180°±10°
• Mechanical Angle: No Limit
• Motor Drive: IC Drive
• Weight: .24oz / 7g
• Dimensions: 20 x 8 x 17.8 mm (LWH)
• Torque:
  • 37oz @ 6.0v
  • 43oz @ 7.4v
  • 49oz @ 8.4v
• Speed:
  • .075 sec @ 6.0v
  • .058 sec @ 7.4v
  • .05 sec @ 8.4v
• Spline: 20Tφ4.0mm
• Dead Band Width: 2¦Ìs
• BEC is not required but recommended for Max Perf.

Priced at $59.99, the 49Sub Micro Servo is available through REEFS RC and their dealers. Visit reefsrc.com to learn more about this compact, multi-use servo.
